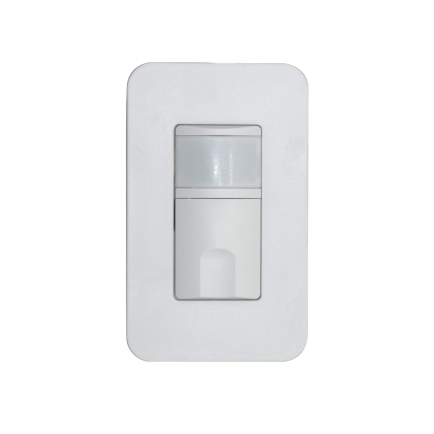

Wall Switch w/ PIR Occupancy/Vacancy Sensor

Model Number BRI-VOS201
SKU AA-BRI-VOS201 Categories ,

Please log in or register an account with us to view pricing.

The wall sensor switch turns lighting or fan loads on and off based on occupancy and ambient light level. They are designed to replace a mechanical light switch. The switch operates with 120 to 277V AC line voltage.

Wall Switch w/ PIR Occupancy/Vacancy Sensor

The sensor uses passive infrared technology to sense human motion and defines it as occupancy. A red LED in the sensor blinks upon occupancy and then resets. It will blink again when it detects motion after the 2-second reset.

In Automatic ON & Automatic OFF mode (Occupancy), the sensor turns on the load automatically when it detects occupancy. Once the space is vacant and the time delay elapses, it turns off the load automatically.

In Manual ON & Automatic OFF mode (Vacancy), the sensor turns on the load when you push the button. Once the space is vacant and the time delay elapses it turns off the load automatically.

Wall Switch w/ PIR Occupancy/Vacancy Sensor



Model No. BRI-VOS201
Description Passive Infrared Occupancy Sensor/Vacancy Sensor Wall Switch
Input Voltage (VDC) AC120-277V
HF System 50/60HZm
Max Output Standard Ballast 300W@120V
600W@277V
Max Output LED 300W@120V
600W@277V
Max Output Incandescent 600W@120V
1200W@277V
Motor 1/2hp@120V

Specification Sheets

Specification Sheet

Installation Guides

Installation Guide

IES Files

IES File
