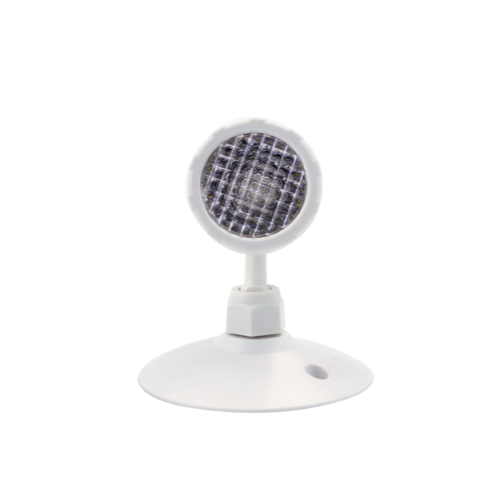

BY-Z1101U Single Remote Lamp Head

Model Number BY-Z1101U
SKU AA-BY-Z1101U Category Tags ,

The Single Remote Lamp Head features a versatile DC3.6V-DC24V input and 1 X 2W lamps, providing a bright 130 lumens without the need for batteries.



UL listed lighting products  Dual Voltage 5-year warranty for LED Post Top

BY-Z1101U Single Remote Lamp Head

  • Input Voltage: DC 3.6V-24V
  • Input Current: DC 3.6V: 270-320mA; DC 12V: 145-170mA; DC 24V: 80-100mA
  • Input Power: DC 3.6V: 0.95-1.15W; DC 12V: 1.75-2.2W; DC 24V: 1.95-2.2W
  • Emergency Luminance Flux: DC 3.6V: ≥ 70LM; DC 12V: ≥ 90LM; DC 24V: ≥ 90LM
  • Operation Temperature: 0oC-40oC
  • Correlated Color Temperature: 6000K
  • Max. mounting height: 10.8 ft ( 3.2 m)
  • Dimension:127x125x125mm
  • Weight: 0.15kg
  • Warranty: 5 Years
