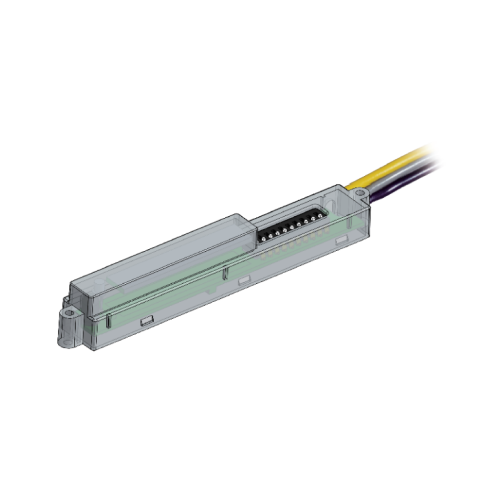

Microwave Daylight Harvesting & Dimming Sensor f/ AA-900056UCCTW2/900059UCCTW2, 900015UCCTW4FT2A, 900015UCCTW8FT2A

Model Number ANT-3C
SKU AA-SENMW-ANT3C Categories ,

Please log in or register an account with us to view pricing.

The Microwave Dimming Sensor is a moving object sensor that can detect a range of 360° with a working frequency of 5.8GHz. Use the Wireless Handheld Configuration Tool (RC-100) to make adjustments to its daylight harvesting function.





Microwave Daylight Harvesting & Dimming Sensor f/ AA-900056UCCTW2/900059UCCTW2, 900015UCCTW4FT2A, 900015UCCTW8FT2A

  • Designed to be used in commercial and industrial installations
  • Able to detect direct and tangential motion
  • Daylight Harvesting & Dimming
  • Designed for SKU 900056UCCTW2/900059UCCTW2, 900015UCCTW4FT2A, 900015UCCTW8FT2A
  • Best at detecting direct motion (coming towards or away from the sensor)
  • Sensor range (unobstructed) up to 50 ft for ceiling mount
  • Pluggable design
  • Function Option: 0-10V Dimming
  • Product Structure: Pluggable
  • Product Model: Microwave Sensor & Controls
  • Product Series: ANT

Microwave Daylight Harvesting & Dimming Sensor f/ AA-900056UCCTW2/900059UCCTW2, 900015UCCTW4FT2A, 900015UCCTW8FT2A



Model No. ANT-9C
Description Microwave Dimming Sensor f/ 900056UCCTW2A, 900059UCCTW2A
Input Voltage (VDC) 10-14V
Output/Max Load 0-10V, max. 25mA sinking current
Power Supply >50mA
Remote Range 50ft. (15m) indoor, no backlight

Specification Sheets

Specification Sheet

Installation Guides

Installation Guide

IES Files

IES File
