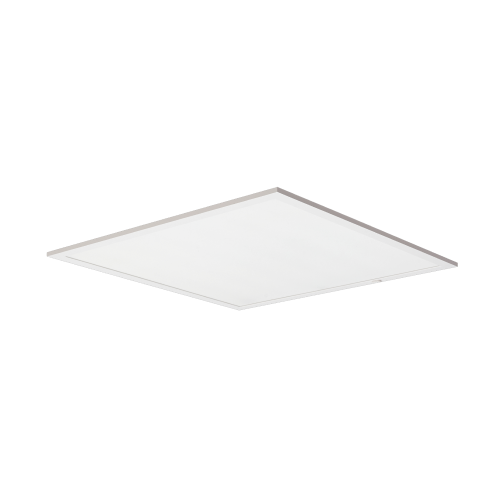

LED Panel 2X2 25/30/40W 3500/4000/5000K w/receptacle

Model Number PL2X2UCCTW4
SKU AA-500812UCCTW4-RC-LB Category Tags ,

The LED Flat Panel replaces common fluorescent troffer fixtures found in all types of commercial buildings from offices to schools, hospitals, retail locations, and more. Each LED Flat Panel is extremely cost effective compared to equivalent solutions on top of superior safety features. Featuring an ultra-thin, seamless aluminum frame the LED Flat Panel is Wattage Selectable and Multi-CCT.



LED Panel 2X2 25/30/40W 3500/4000/5000K w/receptacle

  • DLC 5.1 P, UL & cUL Classified
  • AC120-347V Universal Input
  • CRI>80
  • Ultra-thin, seamless aluminum frame
  • Multi-CCT: 3500/4000/5000K
  • Suitable for Damp Locations
  • Wattage Selectable: 25/30/40W

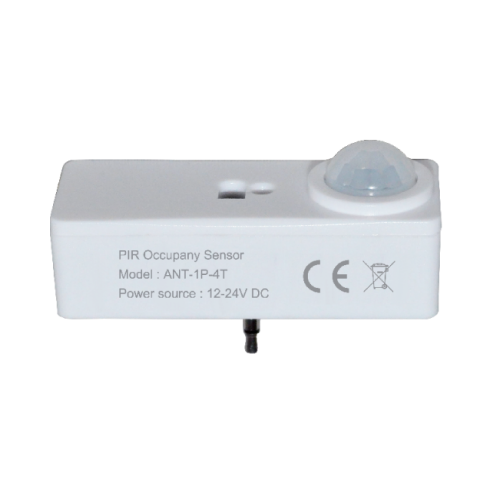

  • Receptacle for Bluetooth Sensor
  • 0-10V Dimmable, Flicker-Free Driver
  • PMMA Non-Yellowing Frosted Lens
  • Unique Heat Dissipation Design
  • High Shock and Vibration Resistance
  • Seismic Clips Included
  • Embed/Suspension/Ceiling-mount
  • Lifetime > 50,000 Hours
  • 7 Years Warranty, Extended Warranty Available



Product replaces and is an alternative to the following:

SKUs: 500812, 500812-BL, 500812H, 500812H-BL, 500812UCCTW, 500812UCCTW2, 500812UCCTW3, 500812UCCTW4-LB, 500812UCCTW4-RC-LB, 500813, 500813-BL, 500813D, 500813H-BL, 500813HD, 500829, 500829-35K, 500829H-BL

Model Numbers: KK-PS-22DW-40-LARZ, PL2X230WUNV40K, KK-PS-22DW-40-LARZ, PL2X230W34740K, PL2X2UCCTW, PL2X2UCCTW2, PL-22-BL-347V-40D-SPCDN, PL2X2UCCTW3, PL2X2UCCTW4, KK-PS-22EW-40-LUSA, PL2X230WUNV50K, KK-PS-22EW-40-LARZ, PL2X230W34750K, KK-PS-22EW-40-LARZ, KK-PS-22WW-40-LARZ, KK-PS-22WW-40-LLCZ, PL2X230W34735K





Specification Sheets

Specification Sheet

Installation Guides

Installation Guide

IES Files

IES File
