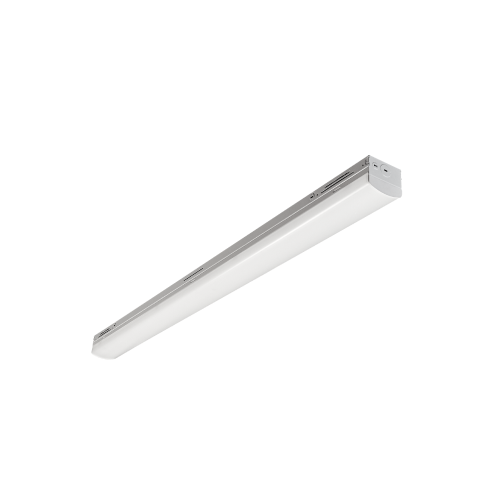

LED Linear Strip 3FT AC120-347V 18/25/30W 3500/4000/5000K

Model Number ST3FUCCTW2

LED Linear Strip are used in areas that require strong sources of illumination, such as office spaces, storage areas, and hallways. These fixtures are inexpensive and often used in more utilitarian spaces where good illumination levels are needed.



LED Linear Strip 3FT AC120-347V 18/25/30W 3500/4000/5000K

  • LED saves 50-60% of energy over T8-T5HO
  • High LM/W (Lumen per watt) LM80 Approved Seoul LED’s
  • CRI>80
  • Color Temperature Selectable: 3500/4000/5000K
  • Wattage Selectable: 18/25/30W
  • 0-10V continuous dimming, optional four-level occupancy sensor (70%-60%-50%-20%)
  • Wide input voltage 120-347V
  • Die formed of 24 gauge cold-rolled steel body
  • All Steel surfaces are painted after fabrication with high gloss baked white matte power paint
  • Damp location rated
  • Tool-Less Hinged bottom LED driver access doors
  • Can be surface mounted , or chain suspended
  • 150,000 hrs+ lifespan
  • UL-cUL Listed, RoHS Compliant, Design Lights Consortium (DLC) Qualified Products List
  • 7 Years Warranty. Extended Warranty Available



Product replaces and is an alternative to the following:

SKUs: 900052

Model Numbers: ST3F25WUNV40K

LED Linear Strip 3FT AC120-347V 18/25/30W 3500/4000/5000K



Order SKU Model No. Description Input Voltage Dimension Lumen
AA-900052UCCTW2 ST3FUCCTW2 LED Strip, 3FT, AC120-347V, Wattage/CCT Selectable, 30/25/18W, 3500/4000/5000K, 3900/3250/2340LM, 0-10V dimming, w/receptacle f/MW sensor 120-347V 3FT 3900/3250/2340LM



Options

  • 2’, 3’, 4’ and 8’ lengths available
  • Motion/dimming motion sensor available
  • 3500K/4000K / 5000K selectable
  • 15/20/25W selectable



Construction

  • White steel housing
  • Access panel for easy wiring
  • IP20 rated

Specification Sheets

Specification Sheet

Installation Guides

Installation Guide

IES Files

IES File
