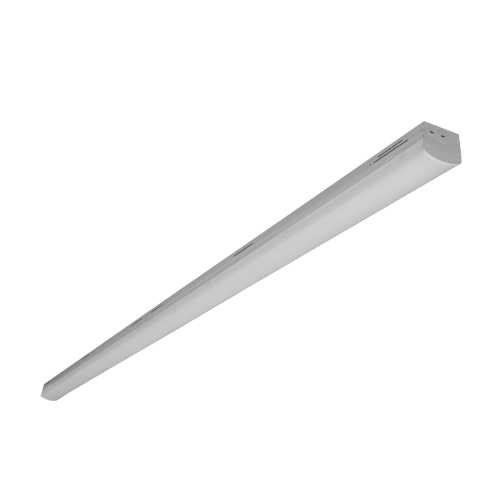

LED High Bay Strip AC120-347V 65/75/90W 3500/4000/5000K

Model Number ST8FUCCTW2

Now offering customizable lengths, versatile mounting options, and color temperatures selectable for our LED High Bay Strips. With high CRI ratings and dimmable control, our durable strips are perfect for residential, commercial, and architectural applications. These Strips are used in areas that require strong sources of illumination, such as office spaces, storage areas, and hallways. Often used in more utilitarian spaces where good illumination levels are needed.



LED High Bay Strip AC120-347V 65/75/90W 3500/4000/5000K

  • LED saves 50-60% of energy over T8-T5HO
  • High LM/W (Lumen per watt) LM80 Approved Seoul LED’s
  • CRI>80
  • Color Temperature Selectable: 3500/4000/5000K
  • Wattage Selectable: 65/75/90W
  • 0-10V continuous dimming, optional four-level occupancy sensor (70%-60%-50%-20%)
  • Wide input voltage 120-347V
  • Die formed 24 gauge cold-rolled steel body
  • All Steel surfaces are painted after fabrication with high gloss baked white matte power paint
  • Damp location rated
  • Tool-Less Hinged bottom LED driver access doors
  • Can be surface mounted , or chain suspended
  • 150,000 hrs+ lifespan
  • UL-cUL Listed, RoHS Compliant, Design Lights Consortium (DLC) Qualified Products List
  • 7 Years Warranty. Extended Warranty Available



Product replaces and is an alternative to the following:

SKUs: 900060, 900063, 900064

Model Numbers: ST8F90WUNV40K, ST8F65W347V40K, ST8F65W347V50K



LED High Bay Strip AC120-347V 65/75/90W 3500/4000/5000K

Order SKU Model No. Description Input Voltage Dimension Weight
AA-900059UCCTW2A ST8FUCCTW2 LED High Bay Strip 8ft 65/75/90w AC120-347V 12,150LM 3500/4000/5000K  0-10V dimming 120-347V 96’’x3.58’’x3.35’’ 3.4 kg



Options

  • 2’, 3’, 4’ and 8’ lengths available
  • Motion/dimming motion sensor available
  • 3500/4000 / 5000K selectable
  • 65/75/90W selectable



Construction

  • White steel housing
  • Access panel for easy wiring
  • IP20 rated



Specification Sheets

Specification Sheet

Installation Guides

Installation Guide

IES Files

IES File
