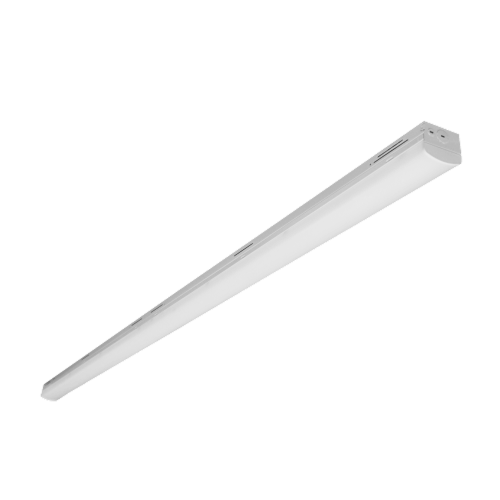

LED High Bay Strip 8FT AC120-347V 34/42/52/68W 3000/3500/4000/5000/6500K ECO

Model Number ETLSN-W-8FT/OF/68/52/42/34/YDM/120-347/CCT

Please log in or register an account with us to view pricing.

Transform your spaces with AALED ECO Linear Strip Lights, offering sleek, modern illumination for both residential and commercial environments. Perfect for accent lighting, task lighting, and architectural applications, these energy-efficient LED strips provide consistent brightness and long-lasting performance. With 2′, 3′, 4′ and 8′ lengths, optional built-in sensors, multi CCT and dimming options, AALED Linear Strip Lights are versatile and easy to install, making them ideal for offices, kitchens, retail spaces, and more.



LED High Bay Strip 8FT AC120-347V 34/42/52/68W 3000/3500/4000/5000/6500K ECO

  • LED saves 50-60% of energy over T8-T5HO
  • High LM/W (Lumen per watt) LM80 Approved Seoul LED’s
  • CRI>80
  • Color Temperature Selectable: 3000/3500/4000/5000/6500K
  • Wattage Selectable: 34/42/52/68W
  • 0-10V continuous dimming, optional four-level occupancy sensor (70%-60%-50%-20%)
  • Wide input voltage 120-347V
  • Die formed of 24 gauge cold-rolled steel body
  • All Steel surfaces are painted after fabrication with high gloss baked white matte power paint
  • Damp location rated
  • Tool-Less Hinged bottom LED driver access doors
  • Can be surface mounted , or chain suspended
  • LM70 180,000 hrs, LM80 120,000 hrs
  • Optional built-in sensor
  • UL-cUL Listed, RoHS Compliant, Design Lights Consortium (DLC) Qualified Products List
  • 10 Year Warranty. Extended Warranty Available



Product replaces and is an alternative to the following:

SKUs: 900060, 900063, 900064

Model Numbers: ST8F90WUNV40K, ST8F65W347V40K, ST8F65W347V50K



LED High Bay Strip 8FT AC120-347V 34/42/52/68W 3000/3500/4000/5000/6500K ECO



Rated  Voltage (V) 120-347V
Rated  Wattage (W) 34/42/52/68W
Frequency ( Hz) 50/60 Hz
Power Factor >0.90
Luminous Flux (LM) 5400/7000/8200/10500LM
Color Temperature 3000/3500/4000/5000/6500K
Color Rendering Index ( Ra) >80
Beam Angle 120°
Lamp Efficacy (LM/W) 154LM/W
Rated Lamp Lifetime (h) LM70 180,000 hrs, LM80 120,000 hrs
Dimming 0-10V Dimming
Dimension (mm) 8′
Certificate cULus, DLC



Specification Sheets

Specification Sheet

Installation Guides

Installation Guide

IES Files

IES File
