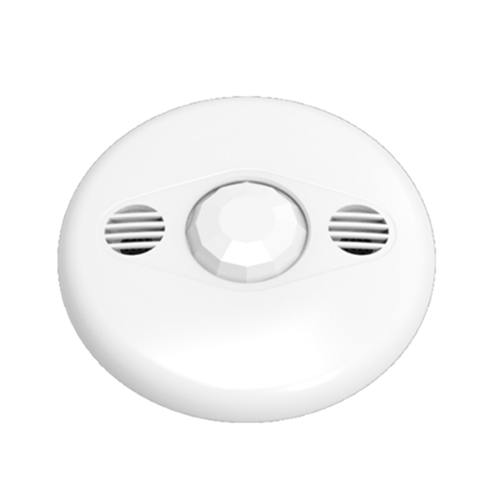

The low profile BRI-DT301 dual technology occupancy sensor combines the benefits of passive infrared (PIR) and ultrasonic technologies. The sensor mounts on the ceiling with a flat, unobtrusive appearance and provides 360 degrees of coverage.
| Model No. | BRI-DT301 |
| Description | Dual Technology Ceiling PIR & Ultrasonic Sensor |
| Input Voltage (VDC) | 120/230(Single Phase)/277/347 VAC 50/60Hz 120VAC, 0-800W Ballast/Tungsten/LED 230VAC, 0-1200W Ballast/LED 277VAC, 0-1200W Ballast/LED 347VAC, 0-1500W Ballast/LED |
| Ultrasonic Frequency | 40kHz |
| Mounting Height | 12FT Maximum |
| Coverage Pattern | 360° Multi-level fresnel lens |
| Operating Temperature | 32°F – 131°F 0°C – 55°C |
| Type | Dual Technology Ceiling Sensor |
