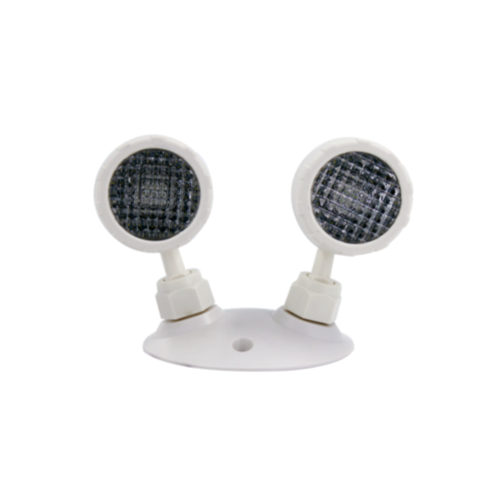

BY-Z1102U Double Remote Lamp Head

Model Number BY-Z1102U
SKU AA-BY-Z1102U Category Tags ,

The Double Remote Lamp Head is designed for DC3.6V-DC24V input, offering powerful dual 2X5W lamps that deliver a brilliant 700 lumens without requiring batteries.


UL listed lighting products  Dual Voltage 5-year warranty for LED Post Top

BY-Z1102U Double Remote Lamp Head

  • Input Voltage: DC 3.6V-24V
  • Input Current: DC 3.6V: 550-620mA; DC 12V: 290-330mA ;DC 24V: 160-200mA
  • Input Power: DC 3.6V: 1.8-2.2W; DC 12V: 3.6-4.4W; DC 24V: 3.6-4.4W
  • Emergency Luminance Flux: DC 3.6V: ≥ 140LM; DC 12V: ≥ 180LM; DC 24V: ≥ 180LM
  • Operation Temperature: 0oC-40oC
  • Correlated Color Temperature: 6000K
  • Max. mounting height: 13.8 ft ( 4.1 m)
  • Dimension:125x185x129mm
  • Weight: 0.26kg
  • Warranty: 5 Years

Specification Sheets

Specification Sheet

Installation Guides

Installation Guide

IES Files

IES File
