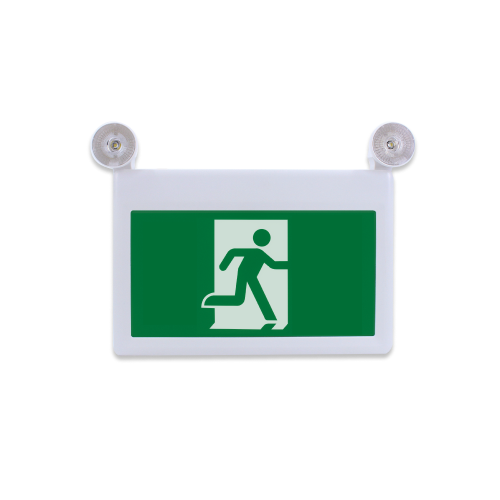

BY-F2230CA LED Running Man Exit Sign Combo

Model Number BY-F2230CA
SKU AA-BY-F2230CA Category Tags ,

Please log in or register an account with us to view pricing.

Ensure safety and compliance with the AALED Running Man Exit Sign Combo, combining a clear, energy-efficient exit sign with reliable emergency lighting. Designed for commercial and industrial spaces, this durable combo unit features a sleek design with durable white ABS housing, 3 interchangeable pictograms, 2 adjustable combo heads, long-lasting LED illumination, and backup battery functionality for 2 hours of enhanced safety during power outages. Easy to install and built to meet safety standards, the AALED Running Man Exit Sign Combo is the perfect solution for guiding occupants to safety while reducing energy costs.



UL listed lighting products  Dual Voltage

BY-F2230CA LED Running Man Exit Sign Combo

  • Input Voltage: AC120V-347V
  • Rated Wattage: 4.5W
  • Combo Head Wattage: 1W/Head
  • Emergency Output Rating: 1W
  • Power Factor > 0.4
  • Operation Temperature: 0°C – 40°C
  • Charging Time: 24 Hours
  • Emergency Duration: 2 Hours
  • Battery: Ni-Cd 3.6V 900mAh
  • Dimension (mm): 395 x 59 x 285mm
  • Cover/Housing Materials: PC/ABS
  • 3 Pictograms Included
  • Mounting Type: Wall/Side/Ceiling Mounting
  • Damp Locations
  • cULus Listed, ROHS
  • 10 Year Warranty

Specification Sheets

Specification Sheet

Installation Guides

Installation Guide

IES Files

IES File
