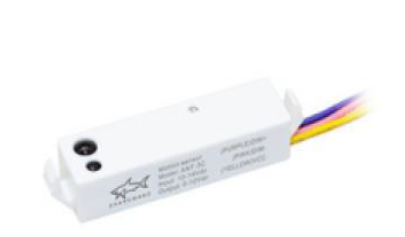

The AA-SENMW-ANT3DBLE uses microwave detection architecture for improved 360° detection coverage and connects over a Bluetooth® Low Energy (BLE) mesh network. Dimming levels and schedules can be set through the AASmart LED app.
| Model No. | ANT-3D-BLE-GE |
| Description | Bluetooth Microwave Sensor, 0-10V dimming, DC12V, f/ SKU 900051UCCTW2/900056UCCTW2/900059UCCTW2, 900015UCCTW4FT2A, 900015UCCTW8FT2A |
| Input Voltage (VDC) | 10-14 |
| Output/Max Load | 0-10V, max. 25mA sinking current |
| Power Supply | 12-24V, >50mA |
| Remote Range | 12ft max |
